Tungsten carbide rectangular blanks/cemeneted carbide rod bar plate strip
Product Description

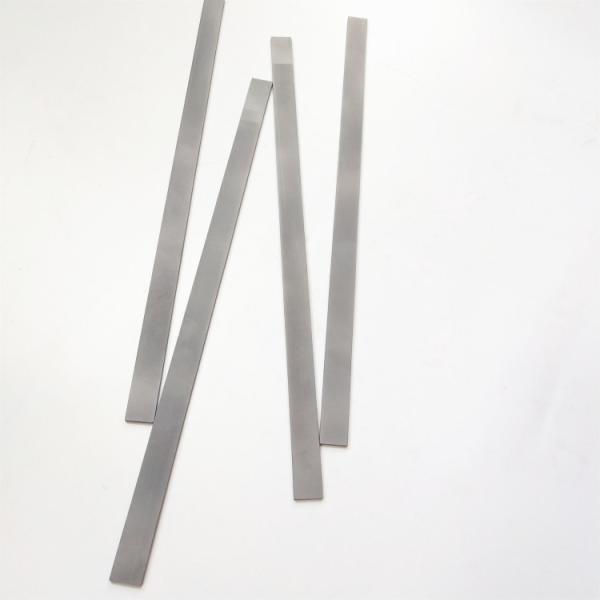

Tungsten carbide strip, also called cemented carbide strip, are made from 100% virgin raw materials. They’re square and rectangle shapes.
The carbide strips are used in wide application field. They’re very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.
Various grades and sizes can be chosen.
Features:
1. 100% virgin raw material
2. High hardness, excellent wear-resistance
3. High elastic modulus and compressive strength
4. Stable chemical properties
5. Blanks, precision grinded and polished
6. Various sizes and grades
7. Factory’s offer
8. Strict products quality inspection
| Length(mm) |
Width(mm) |
Thickness(mm) |
| 10-330 |
2-100 |
1.2-20 |
Cemented Tungsten carbide strips has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness).
Tungsten carbide strips are usually used for treating solid wood, shaving board and middle-density fiberboard,Also be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade,our strips meet the ISO 9001:2015 quality standard.
Application:
Mainly used in vertical shaft impact crusher (sand making machine), with high performance and high efficiency of sand making and shaping. A variety of crushing forms (stone-to-stone, stone-to-iron) to meet different crushing needs of users. Rotor with stone-stone structure-suitable for crushing sand for hard and extremely hard materials, and shaping various soft and hard materials.
It can adjust the level of stone powder content, which is suitable for the requirements of high stone powder content in grinding jade concrete, and the requirements of low stone powder content for ordinary concrete. The stone iron rotor is used-suitable for the crushing of materials below medium hardness, with high crushing efficiency, Features such as high sand production rate and easy adjustment of fineness modulus.
1. Adapt to different material crushing requirements of users. Such as: granite, basalt, limestone, quartzite, gneiss, cement
clinker, concrete aggregate, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, etc.
2. Compared with other materials, it has the advantages of good comprehensive performance, high reliability, strong wear
resistance, and low price!
3. The length of the alloy bar can be customized according to the specifications of the throwing head, and the service life of each pair of alloys can reach 40-70 hours.
Recommanded grades for your reference
Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Our Packing and shipment:
|
Packing
|
Outside Carton or plywood case with inner plastic box.
|
|
Shipping
|
UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques
|
If have any more information, please feel free to contact with me.
Contact information
contact person: Ms Sharon Chen
mobile number +86 18173388506
email address: sharon@chinahardalloy.com
Website:www.wmcarbide.com
